Description

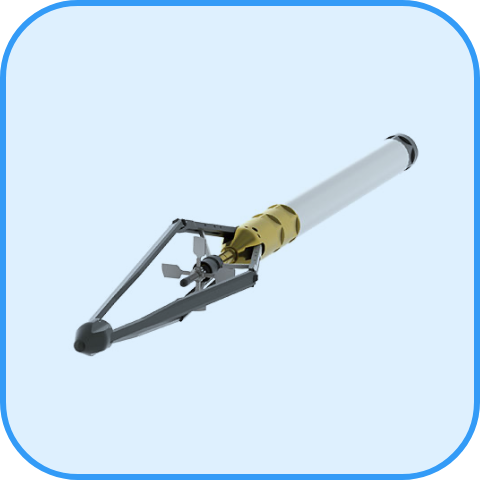

Fullbore Spinner
The Fullbore Flowmeter combined with our Temperature tool will allow you to run a production profile. The FBFM has a three-arm spring-loaded cage. You only have to buy one tool to center the impellers in multiple casing sizes. The blade design allows the impeller to work on small production rate wells due to low-friction bearings and the large cross-sectional area. The tool is supplied with ancillary items that allow you to run in all casing sizes from 4-1/2” to 9-5/8”.
Features:
- Injection and production flow profiling
- Leak detection
- Low or hi-flow rates
| Temperature Rating | 177°C (350°F) |
| Pressure rating | 103.4 MPa (15,000 psi) |
| Tool Diameter | 43mm (1-11/16”) |
| Length | 1064mm (41.92”) (Electronics + Fullbore) |
| Weight | 3.6kg (8lb) |
| Casing range | 4-1/2” to 9-5/8” |
| Flow output | 10 pulses/revs (directional) |
| Threshold | <0.5m/min (<1.6ft/min) |
| Max fluid velocity | 90Bpd |
| Material | Sour Service |
| Connector | go-connector (single pin) |
| Flow measure point | 414mm (16.3”) |
